How to Test and Adjust CNC Coolant Concentration

Maintaining the correct coolant concentration in CNC machines ensures smooth operations, tool longevity, and quality finishes. CNC coolant acts as a lubricant, reduces heat, and flushes away chips during machining. However, improper concentration—weak or strong—can lead to several issues. Weak coolant mixtures can reduce lubrication and promote corrosion, while overly concentrated coolant increases costs and risks damaging machine components.

This guide will cover how to test CNC coolant concentration and adjust it accurately to keep your machines running efficiently.

Importance of proper coolant concentration

How to Test and Adjust CNC Coolant Concentration

Below are the various importance of proper coolant concentration:

Ensures Effective Cooling and Lubrication

Maintaining the proper coolant concentration is essential for efficient cooling and lubrication during machining. When the concentration is too low, the coolant’s ability to reduce heat diminishes, leading to overheating tools and workpieces. Overheating can cause premature tool wear, deformation of materials, and subpar surface finishes. A well-balanced coolant concentration ensures optimal temperature control and smoother machining processes.

Prolongs Tool Life

Proper CNC coolants concentration significantly extends the lifespan of cutting tools. When coolant is too diluted, it lacks the necessary lubricating properties, causing tools to wear out faster due to increased friction. On the other hand, over-concentrated coolant can leave sticky residues that damage tools or clog the system. Maintaining the correct concentration protects tools from unnecessary wear and improves overall cost efficiency.

Prevents Corrosion

Incorrect CNC coolant concentration, especially when it’s too weak, can lead to corrosion of machine parts, tools, and workpieces. Coolant often contains additives that protect metal surfaces, but these additives may not work effectively if the concentration is insufficient. Conversely, high concentrations can create a residue that promotes rust when not cleaned properly. Properly balanced coolant ensures corrosion prevention and keeps your machinery in top condition.

Reduces Bacterial Growth

Improper coolant concentration creates an environment for bacteria and fungi to thrive. A weak concentration lacks the biocides necessary to inhibit microbial growth, leading to foul odors, sludge buildup, and reduced coolant performance. Maintaining the recommended concentration keeps microbial contamination at bay, improving workplace hygiene and coolant longevity.

Improves Surface Finishes

Coolant plays a critical role in achieving precise and smooth surface finishes. When the concentration is too weak, it fails to adequately reduce friction and wash away chips, resulting in scratches or poor-quality finishes. Over-concentrated coolant can leave residues on the workpiece, affecting its appearance and functionality. The right concentration ensures clean and accurate machining, producing high-quality components.

Lowers Operational Costs

Maintaining proper coolant concentration reduces costs associated with premature tool wear, machine maintenance, and coolant waste. An incorrect concentration often leads to higher expenses, as you may need to replace tools, fix machines, or dispose of contaminated coolant more frequently. By carefully monitoring and adjusting coolant concentration, you improve efficiency and save money in the long run.

How do you Test Coolant Concentration Levels?

Below are the common ways to test coolant concentration levels:

Refractometer

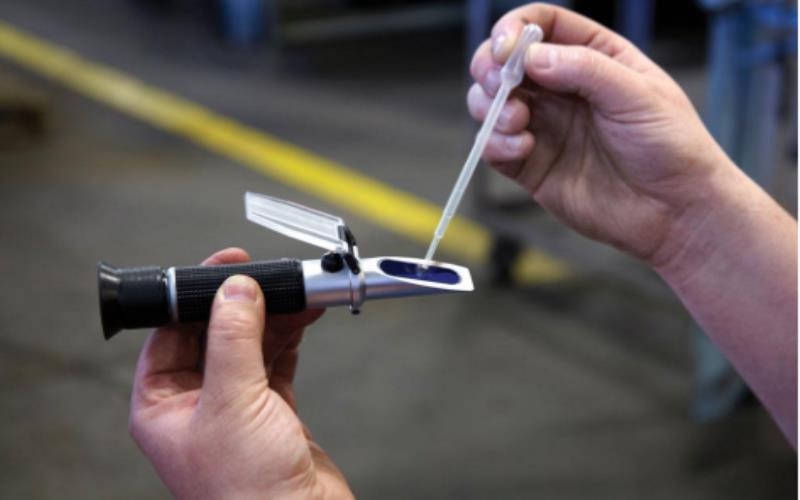

A refractometer is the most common tool for testing coolant concentration levels. It measures the coolant’s refractive index, which correlates to its concentration. To use it, take a small sample of coolant from the tank, place a few drops on the refractometer lens, and close the cover. Look through the eyepiece to read the measurement on the scale. Compare this value to the recommended concentration range provided by the coolant CNC manufacturer.

Test with Coolant Strips

Coolant test strips are an easy alternative for measuring concentration levels. These strips are dipped directly into the coolant tank, where they react with the liquid to indicate concentration. The color on the strip changes based on the concentration level. Match the color to the guide provided with the strips to determine if the coolant needs adjustment. This method is quick and useful for on-the-spot testing.

Measure pH Levels

The coolant’s pH level is another indicator of its concentration and overall condition. Coolant should maintain a pH range of 8.5 to 9.5. Use pH testing strips or a digital pH meter to take a reading. A drop in pH below the recommended range often indicates that the coolant has become too diluted or contaminated, requiring adjustments or replacement.

Check Using a Hydrometer

A hydrometer measures the coolant’s specific gravity, which can indicate its concentration. This tool works by floating in a coolant sample, with the level of buoyancy corresponding to the specific gravity. Use the hydrometer’s reading to verify the coolant is within the manufacturer’s recommended concentration range.

Visual Inspection

While not a precise method, a visual inspection can provide initial clues about coolant concentration. Cloudy or murky coolant often suggests contamination or an incorrect mix. Foaming during machining can also indicate improper concentration. If these signs are present, further testing with precise tools is necessary to confirm the concentration levels.

Frequency of Testing

Coolant concentration should be tested regularly to ensure optimal performance. For high-use machines, daily or weekly testing is recommended. For less frequently used machines, testing before operation is sufficient. Consistent monitoring prevents issues like tool wear, bacterial growth, and poor-quality finishes.

How can you adjust concentration for different materials?

How to Test and Adjust CNC Coolant Concentration

There are some things to note to effectively adjust the coolant concentration to suit different materials:

Understand Material Requirements

Different materials require specific coolant concentrations to optimize machining performance. Harder materials like steel, titanium, and cast iron generate more heat during machining, demanding higher coolant concentrations for effective lubrication and cooling. Depending on the manufacturer’s recommendations, these materials benefit from concentrations ranging from 8% to 12%.

Softer materials like aluminum or brass are less prone to overheating but are sensitive to residue buildup and staining. A lower concentration, typically around 5% to 7%, is more suitable for these. Always refer to the coolant manufacturer’s guidelines to ensure the concentration matches the material’s needs and minimizes potential issues.

Dilute Coolant for Softer Materials

Adjusting coolant for softer materials involves reducing its concentration to prevent residue and staining. Start by adding water to the coolant tank in a controlled manner, following the dilution ratio specified by the manufacturer. For example, if the recommended concentration for a specific material is 5%, dilute the coolant accordingly while ensuring thorough mixing. Run the machine briefly to circulate the mixture evenly across the system. After mixing, use a refractometer or test strips to measure the concentration and confirm it is within the ideal range. Regular testing ensures consistency and prevents over-dilution, which could reduce coolant performance.

Increase Concentration for Harder Materials

When machining harder materials like titanium or hardened steel, a higher concentration of coolant is essential to withstand the heat and provide adequate lubrication. Add a concentrated coolant solution directly to the tank in small increments to adjust. Ensure the coolant system is running to allow proper mixing throughout the system. After adjustment, test the concentration with a refractometer to confirm it matches the required level, typically 10% or higher for these materials. Avoid over-concentrating, which can cause residue buildup, clogging, or fume emissions. A balanced concentration improves tool life and ensures smooth machining.

Factor in Cutting Speeds and Feeds

The machining process itself influences coolant concentration requirements. High-speed machining, common with materials like aluminum, generates more friction, leading to foaming or residue if the concentration is too high. In such cases, a slightly lower concentration, around 5% to 6%, is ideal for smooth operation. Conversely, slower cutting speeds for harder materials like stainless steel demand a higher concentration to reduce wear and provide consistent lubrication. Balancing the concentration with the cutting speed and feed rates ensures optimal machining performance while minimizing wear and coolant-related issues.

Risks of incorrect coolant concentration

Here are the risks of using an incorrect coolant concentration:

Increased Tool Wear

Incorrect coolant concentration can lead to inadequate lubrication, causing excessive friction between the cutting tool and the material. This results in rapid tool wear, reduced tool life, and higher replacement costs. A concentration that is too low often fails to provide sufficient cooling, leading to overheating and tool failure.

Poor Surface Finish

When the coolant concentration is not properly adjusted, the machined part may suffer from poor surface finishes. Insufficient lubrication can cause rough, uneven cuts, while overly concentrated coolant can leave residue or stain on the material. Both scenarios negatively affect the appearance and quality of the final product.

Bacterial Growth and Contamination

Low coolant concentration increases the risk of bacterial growth in the coolant tank. Bacteria can cause unpleasant odors, degrade the coolant, and lead to contamination. This not only affects machining performance but also creates health hazards for operators. Maintaining the proper concentration helps keep bacteria and other microorganisms in check.

Corrosion of Machine Components

Coolant that is too diluted can result in corrosion of the machine’s internal components, including the coolant system itself. Water-heavy mixtures often lack the protective additives needed to prevent rust. Over time, this can damage pumps, hoses, and fittings, leading to costly repairs or downtime.

Overheating of Workpieces

Coolant with incorrect concentration may fail to effectively dissipate heat. Overheating during machining can warp or distort workpieces, making them unusable. This is especially critical for heat-sensitive materials like aluminum and stainless steel, where precise temperature control is essential.

Conclusion

Maintaining the proper coolant concentration is essential for maximizing CNC machining efficiency and ensuring the longevity of both the tools and the machinery. Incorrect concentration can lead to various issues, including increased tool wear, poor surface finishes, bacterial contamination, and even damage to machine components. To avoid these risks, testing and adjusting coolant levels regularly with the appropriate tools, such as refractometers, test strips, and pH meters.
